Maintenance-friendly pre-folding of die-cut cartons.

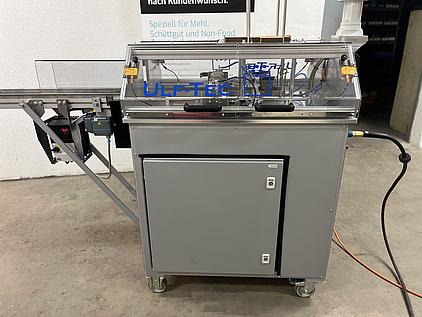

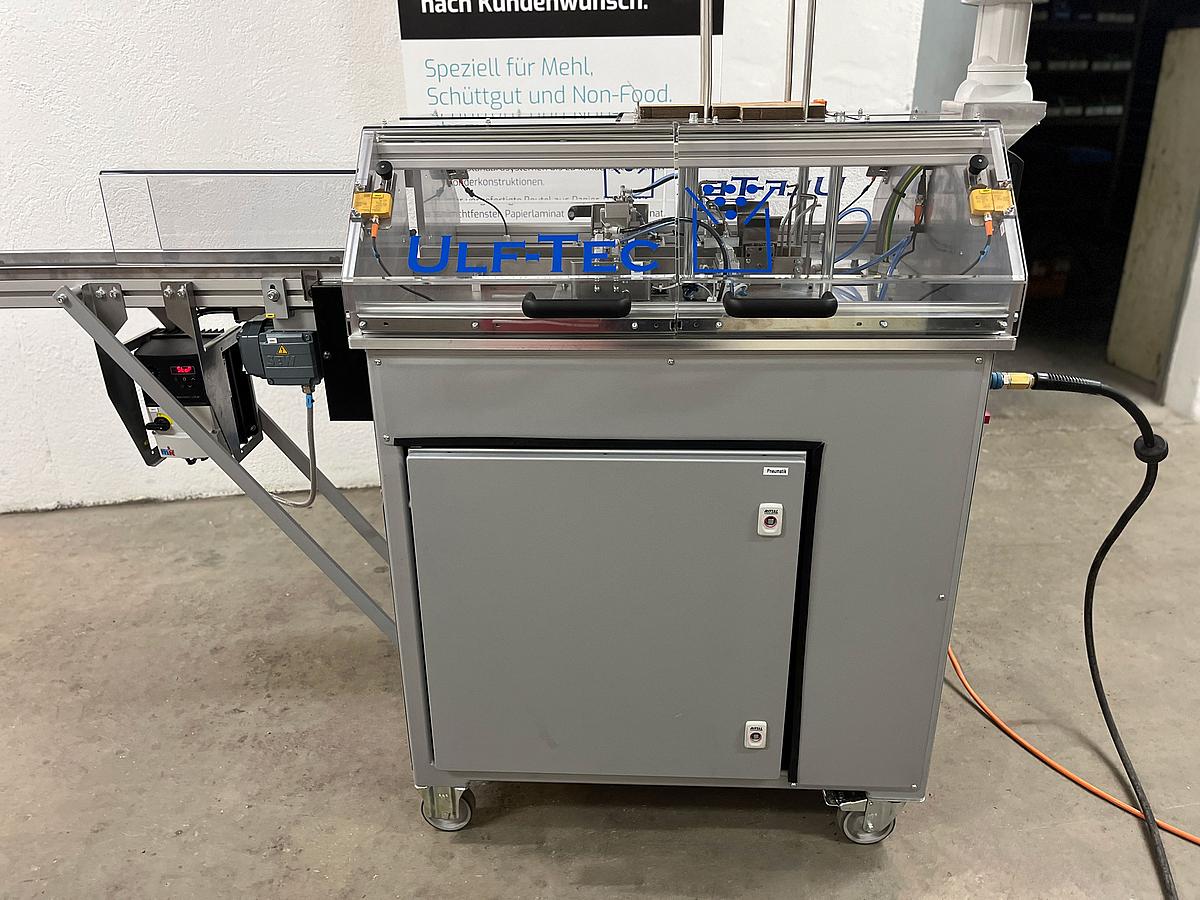

FSA1 – Folding Carton Erector.

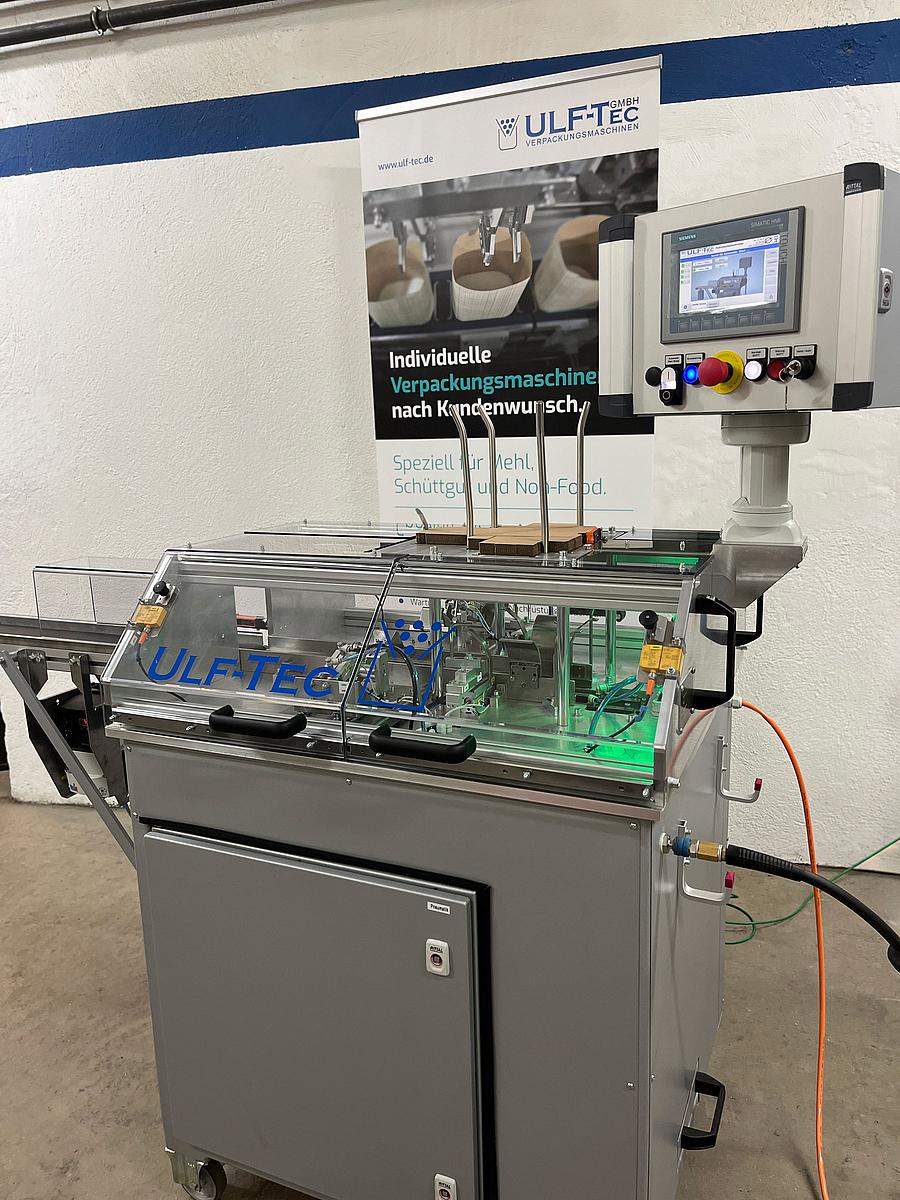

The FSA1 is a compact, efficient folding carton erector for the automatic pre-folding of die-cut cartons. It is ideal for packaging solutions in small to medium-volume production and impresses with its ease of operation, high reliability, and flexible application options.
Products and areas of application

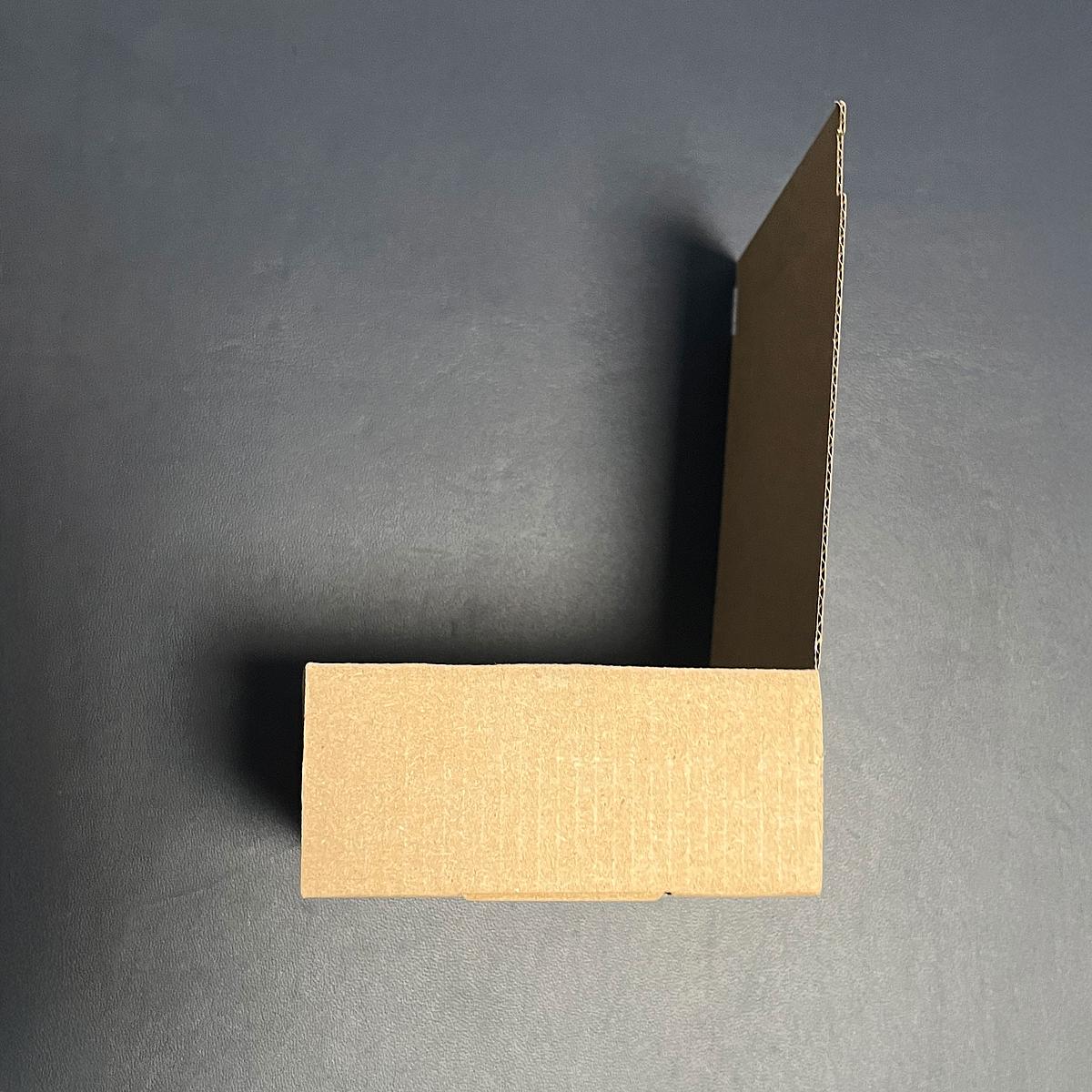

- Pre-folding of die-cut cardboard boxes
- Packaging of electronic components
- Packaging of various small parts
- Use in assembly, production, and packaging lines
- Customization for different box sizes (upon request)
Packaging types

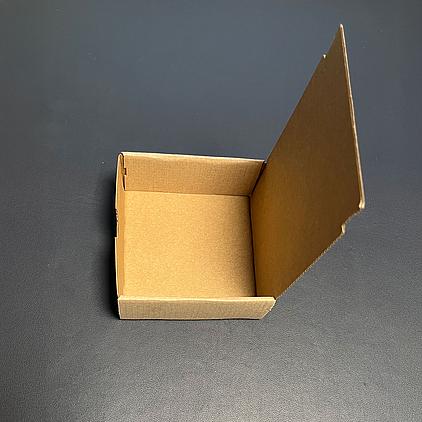

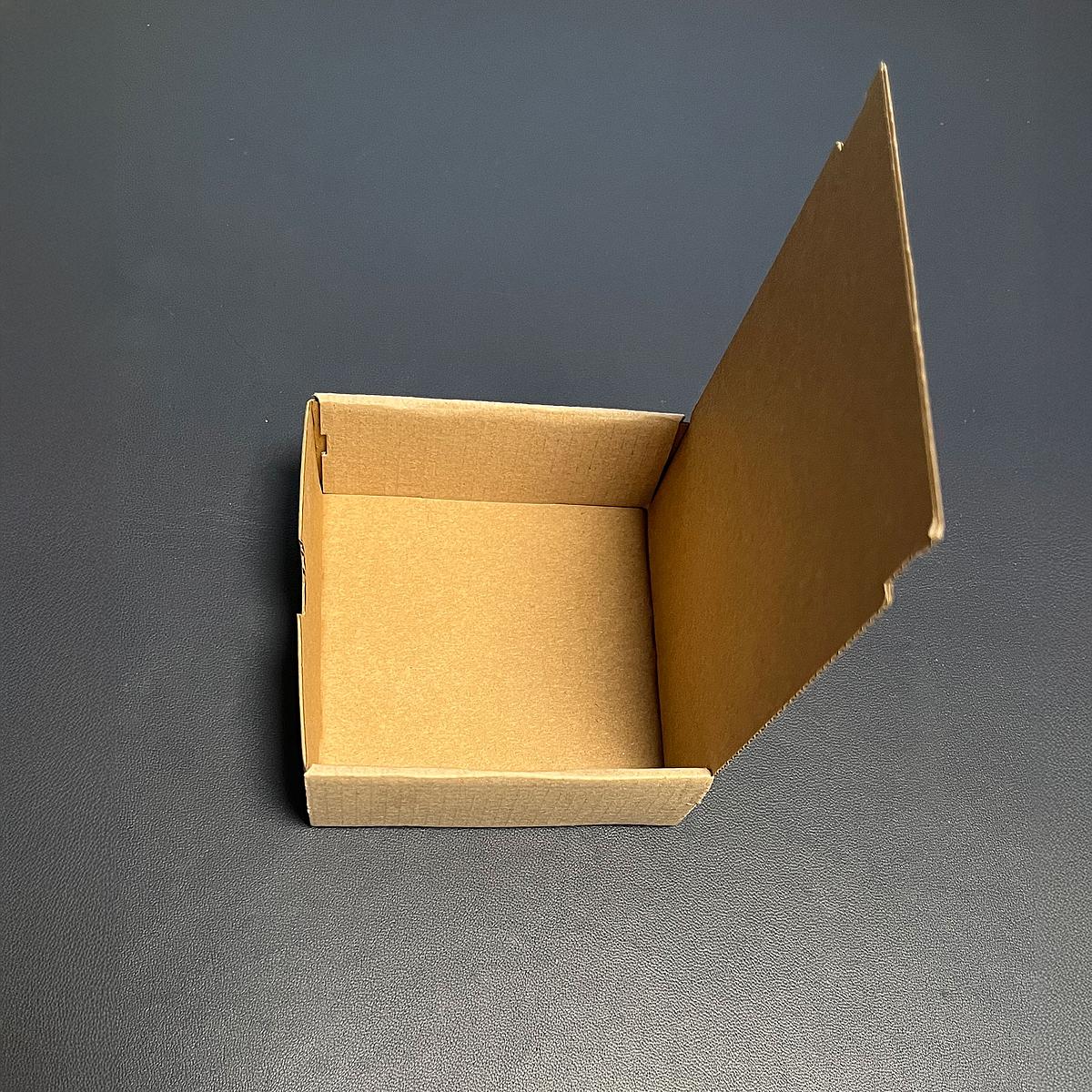

- Folding boxes with tuck-in or self-locking bottoms

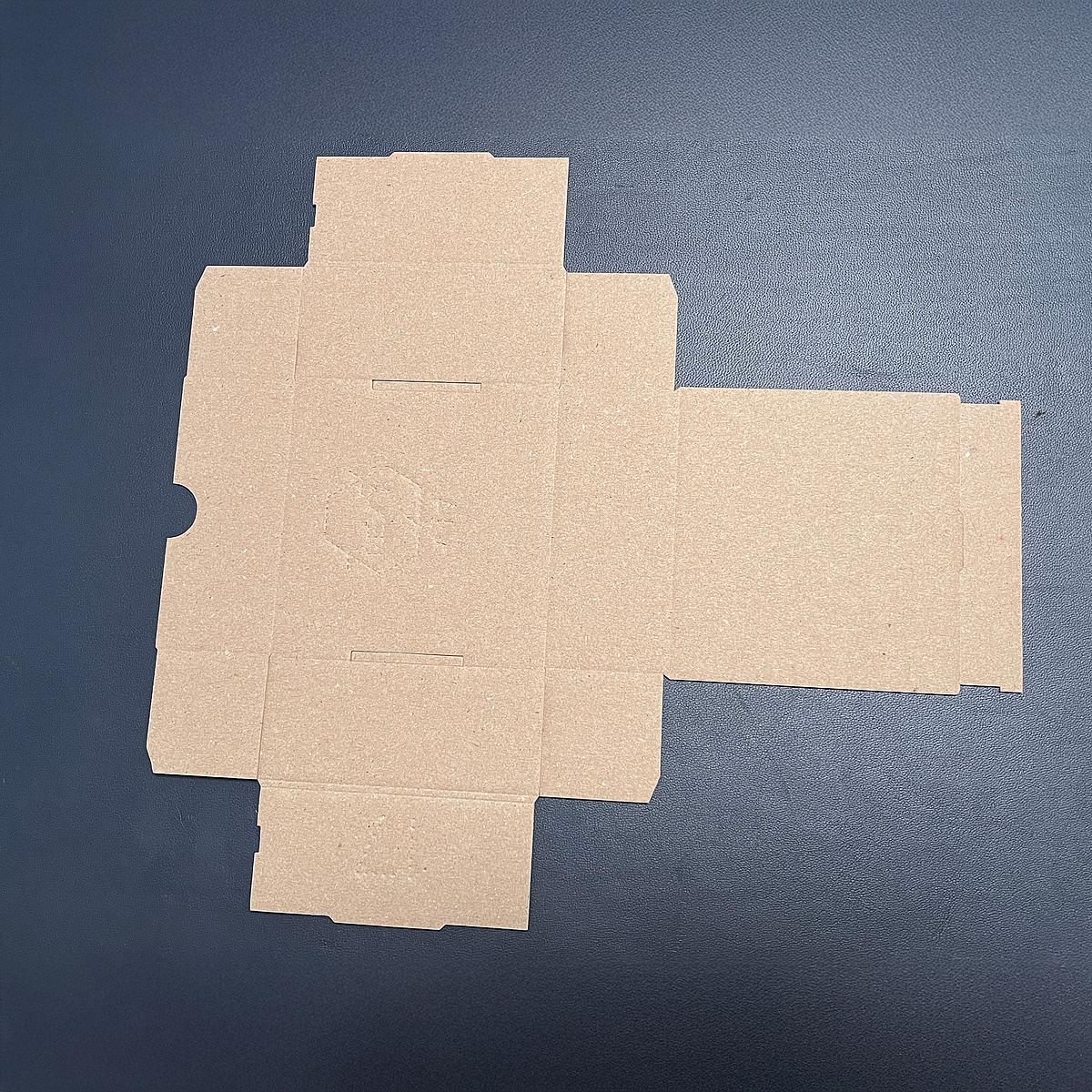

- Cardboard blanks with standard die-cuts
- Customized carton shapes according to customer requirements
Options and equipment
- Siemens control system with intuitive touch panel
- Pneumatic drives for precise and smooth motion sequences
- Preset quantities for series production
- Mobile frame for flexible placement
- Maintenance-friendly and low-wear design
Basic construction

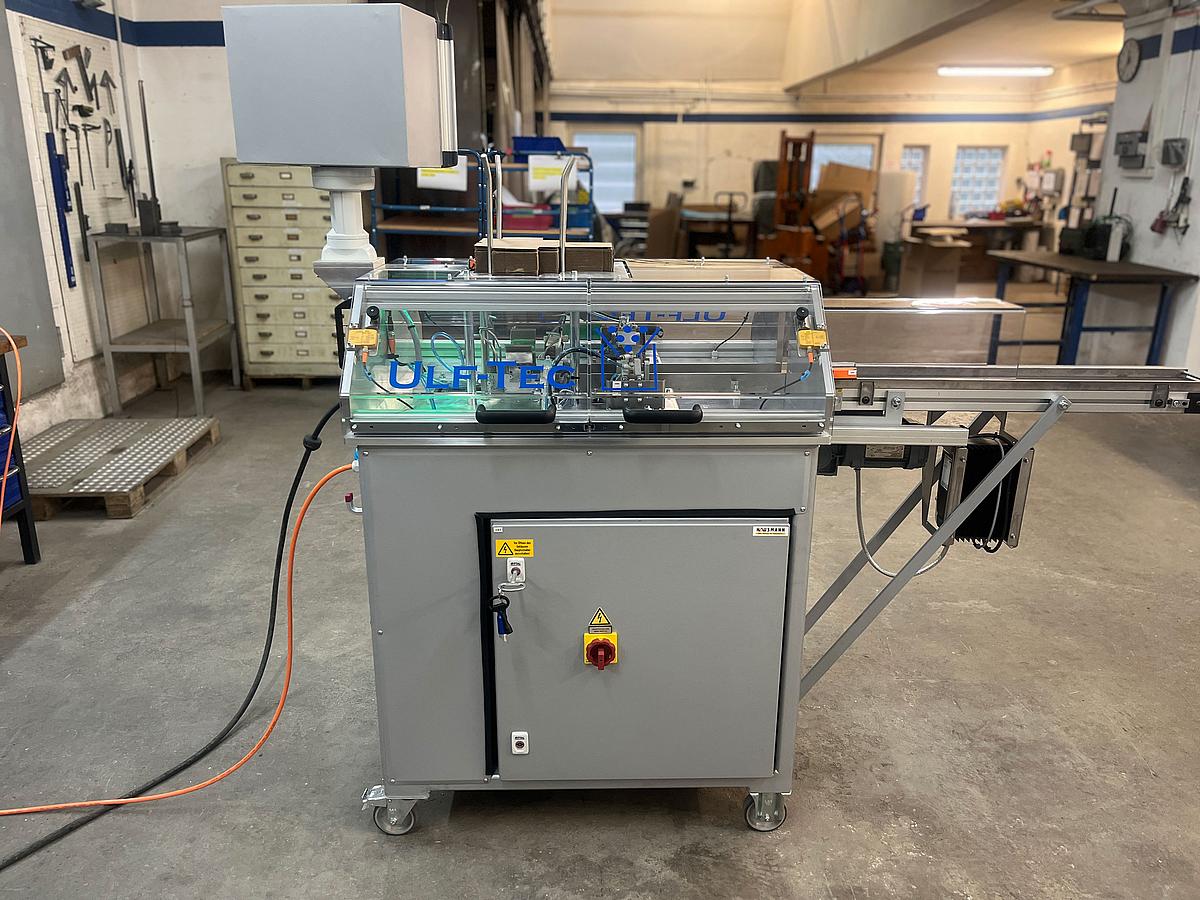

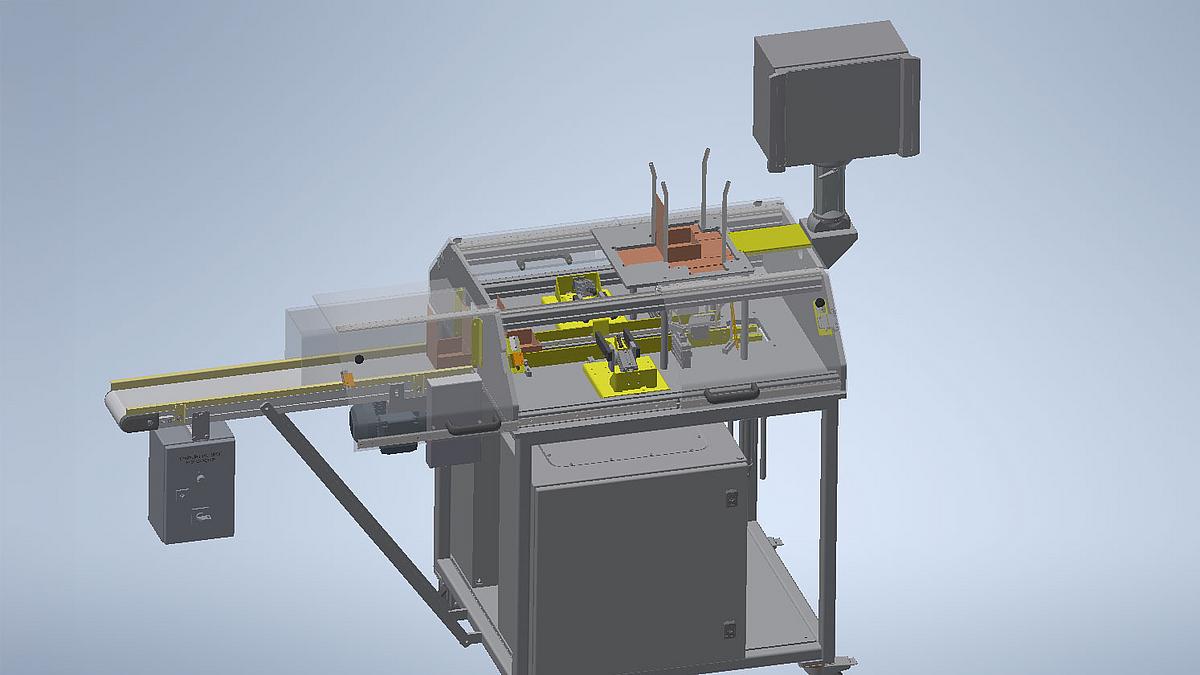

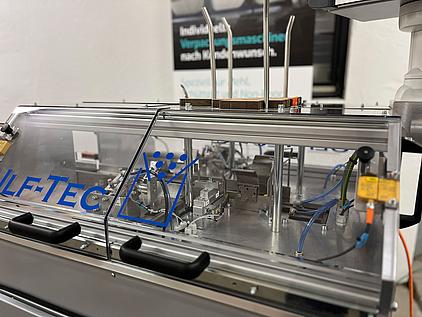

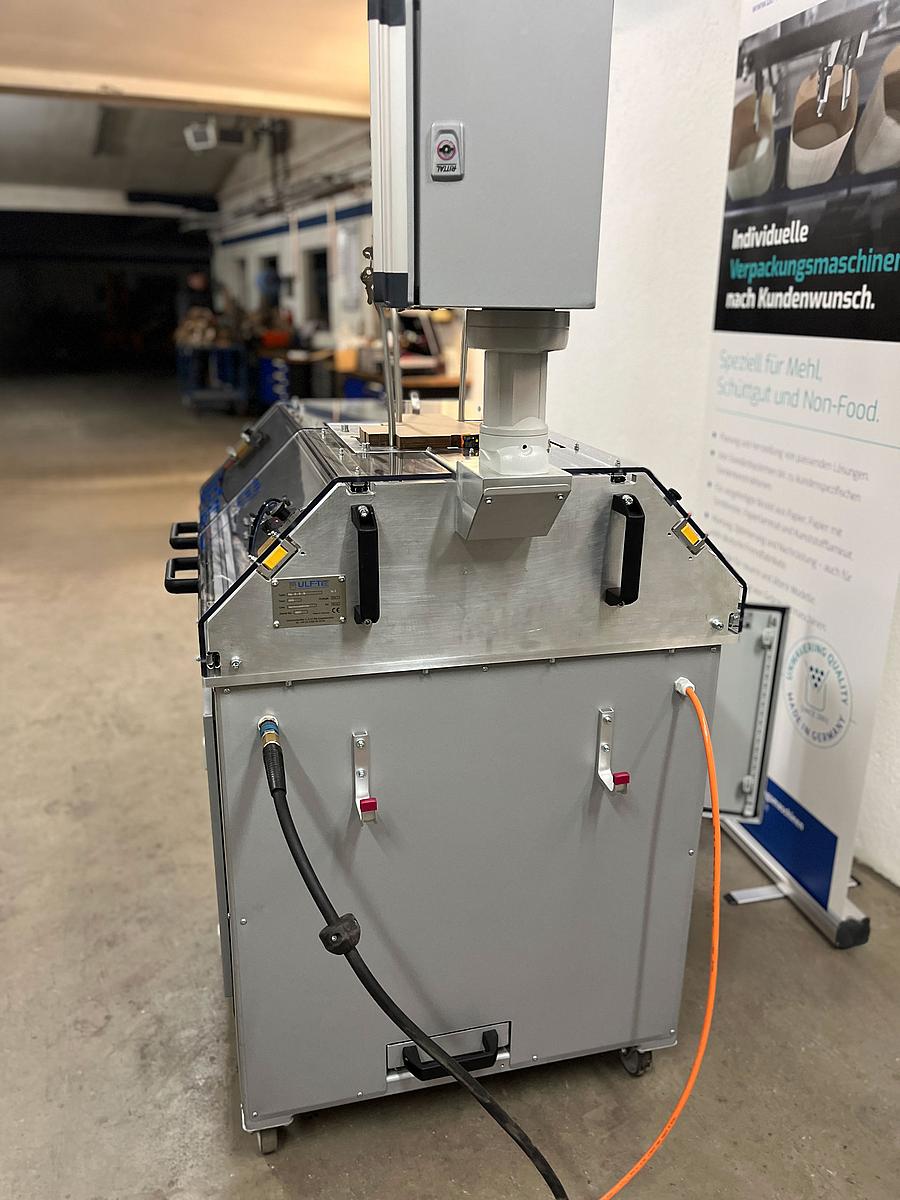

The FSA1 is mounted on a robust, mobile welded frame with an aluminum base plate. All components are easily accessible and designed for a long service life. The compact design allows for use even in confined spaces, while the solid construction ensures stability and operational reliability.
Operation

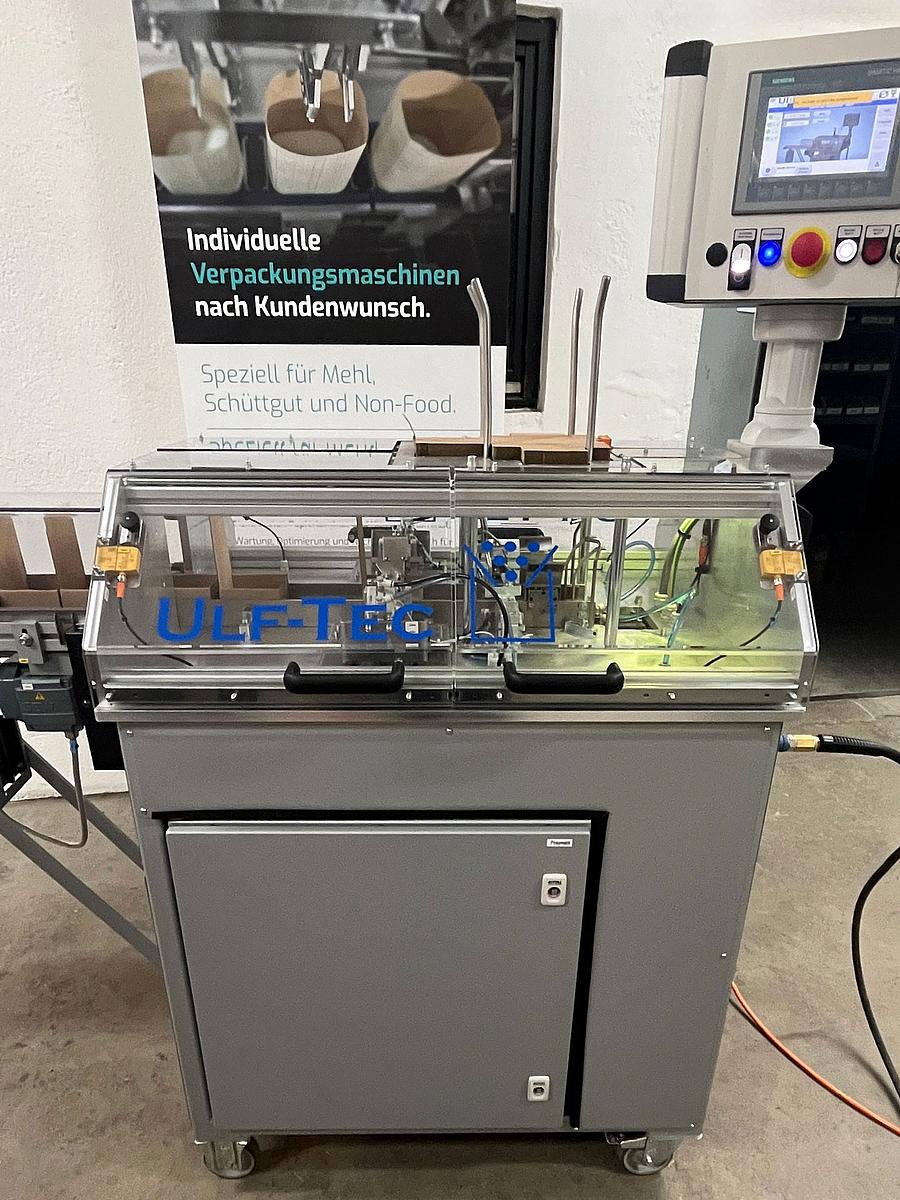

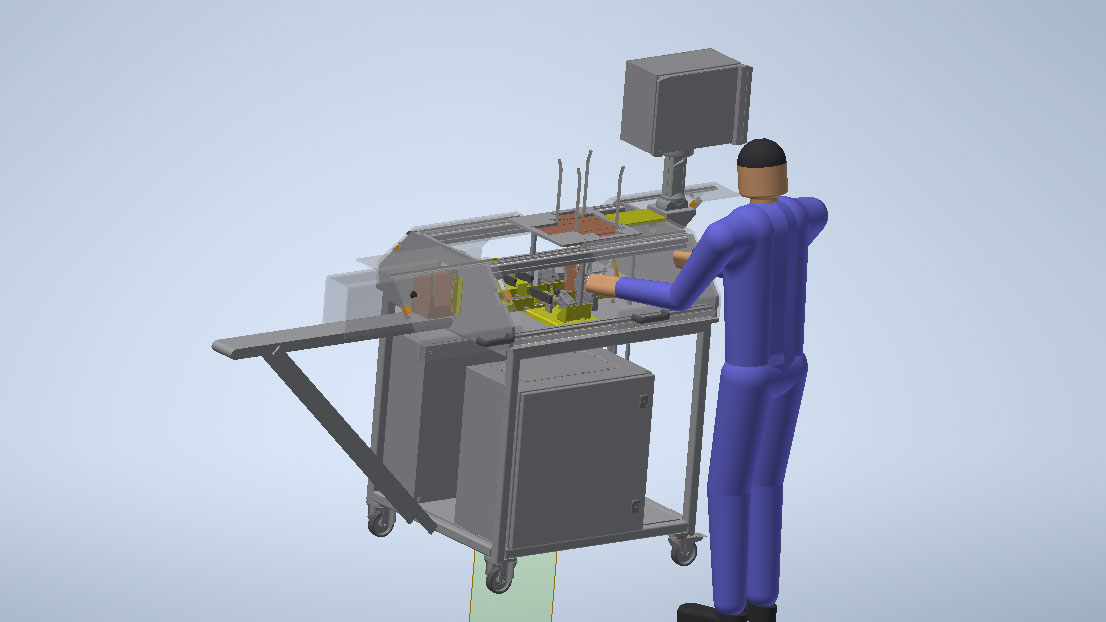

Operation is convenient via the integrated touch display of the Siemens control system. The operator inserts the carton blanks into the machine; the rest of the folding process runs automatically. Since the system is designed for a defined carton size, no manual adjustments are necessary. This ensures consistently high quality with minimal operator effort.
